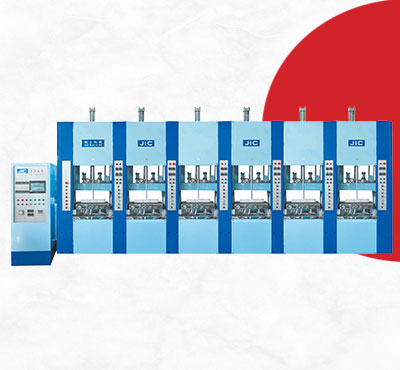

EVA Moulding System

JIC 9106 SF

Automatic Single Color EVA Injection Moulding Machine

6 station/8 station EVA injection moulding machine for single color. Completely all servo motor. Larger plate size for larger mould. Digital display system for process & trouble shooting enables operator easy performance.


Specifications

  • PLC control system

  • Two step study opening/closing mechanism

  • Hydraulic system for soft movement of upper moulds

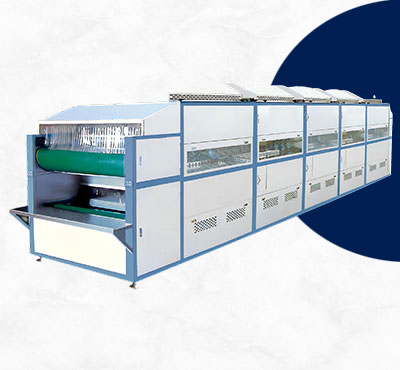

EVA Processing System

SK - 8600

EVA Size Control Stabilizing Conveyor

The machine is used for control the size of the EVA soles after injection production. With 5 section of heating chamber and each heating chamber with different temperature so that to control the size of the EVA soles. With double layer PVC belt, can largely improve production capacity.


Specifications

With speed adjuster, easy to control the speed of the conveyor.

  • Voltage: 380 v

  • Power: 66 kw

  • Machine size: 860 x 150 x 205cm

  • Weight: 3100 kgs

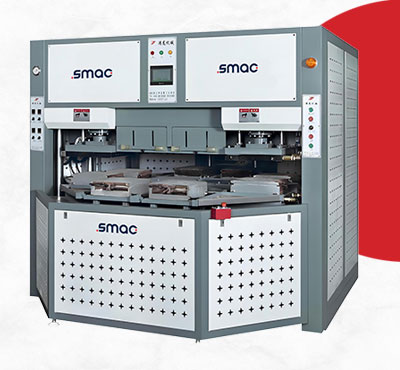

EVA Hot & Cold Compression Moulding System

SK - HL - 240

EVA Hot & Cold Moulding Machine

Machine body designed with special structure, no fracture, no deformation, and increase in machine life. Higher production rate to 50%.


Features

icon
Environmental Protection
icon
Modified Structure
icon
Quadrangle Outsize


Specifications

  • Pressure - 40 Tons

  • Working space - 700 x 520 mm

  • Motor - 7.5 HP

  • Machine size - 2400 x 2300 x 2200 mm



Eva Sole Process Systems

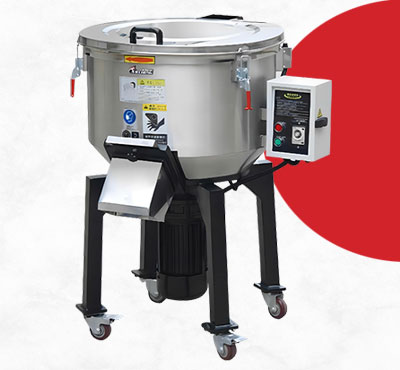

SK-100 - Color Mixer

Stainless Steel SUS304, long Durable, no rust or eruption


Specifications

  • High Quality Copper Motor

  • Voltage - 380 V

  • Capacity - 100 Kgs/time

  • Speed - 63 rpm/m

  • Machine Size - 105 x 115 x 139 cm

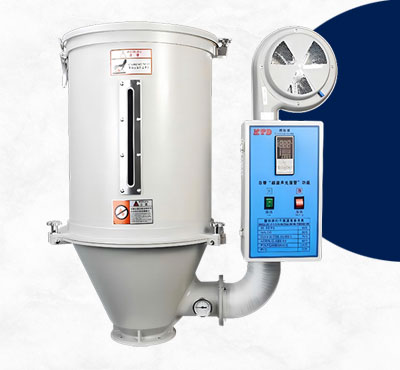

SK - KTD - 75G - Dehumidifier

Removing the humidity from PVC, EVA, granules.


Specifications

  • Adjustable Temperature

  • Voltage - 380 V

  • Capacity - 75 Kgs

  • Power - 5.5 Kw

  • Machine Size - 55 x 75 x 105 cm

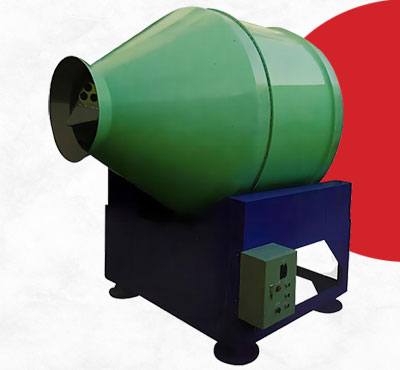

SK-318 - Tubular Machine

To wash EVA injected sole by detergent water and pebbles. Enable degreasing


Specifications

  • Adjustable speed

  • Voltage - 380 V

  • Smooth Soles

  • Power - 2 Kw

  • Machine Size - 230 x 150 x 210cm

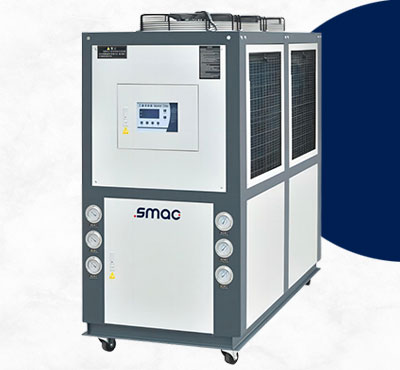

SK - JLSF - 15HP Wind Chiller

Compact wind chiller with/without cooling tower, air/water system.


Specifications

  • Compressor Power - 11.25 Kw

  • Waterflow Rate: 8.6 m3/hr

  • Cooling Capacity: 41250 kcal/hr

  • Machine Size: 185 x 78 x 160 cm

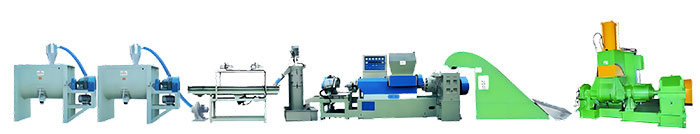

EVA Compounding System


SK - EC / ABS

EVA Compounding Line

This is EVA compounding line set of machine consisting mixer, elevator, mixing mill, EVA extruder, whirlwind barrel, vibrating conveyor and horizontal mixer. This is the process layout for eva compounding to produce EVA granule. This specification and sizes may differ upon the volume and quantity of production. Customized equipment can be provided for high quality and high productivity for EVA granule.


Highlight Features

icon
Complete Formulation
icon
Multiple Stages
icon
Sequence Process
icon
Output/ Volume
