Sole Assembly System

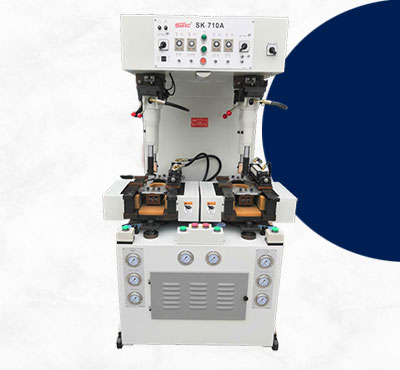

SK - 710 A

Hydraulic Sole Attaching Machine

2 Station hydraulic sole attaching machine for sport shoe production. Independent pressure for every part of pincers to enable proper bonding of lasted upper with sole.

Hydraulic pressure at all side of the shoe enables accurate bonding on complete shoes and independent timing and pressure regulations available for different materials of shoes and sizes. Digital display option available on request.

Single station/double station/ rotary 6 station available on request for mass production.

Power - 2.2 kw
Productivity - 250pairs/hr
Dimension - 1090 x 1000 x 1960 mm

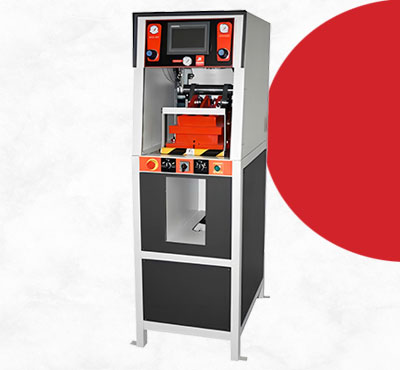

SK - 600 A

Pneumatic Sole Attaching Machine

Double membrane sole attaching machine designed for attaching soft soles with irregular size and side wall.

Independent membrane pressure and timing can be controlled as per the bonding requirement. Digital display option available on request.

Single membrane/double membrane available on request. Completely pneumatic, user friendly, with air recycling system.

Dimension - 950 x 700 x 1780 mm
Net weight - 290 Kg
Power - 0.2 kw
Voltage - 280v/50 Hz
